Intelligent Focusing Imaging Sensor (Default Configuration 5)

● Microscopic imaging supporting ≤30mm target surface ● Uses coaxial Köhler illumination with high uniformity (≥0.9). ● Equipped with laser auto-focus sensor for fast focusing. ● Equipped with objective turret, supports multi-magnification switching, control accuracy up to micron level.

Product introduction

Main Features
● Microscopic imaging supporting ≤30mm target surface
● Uses coaxial Köhler illumination with high uniformity (≥0.9).
● Equipped with laser auto-focus sensor for fast focusing.
● Equipped with objective turret, supports multi-magnification switching, control accuracy up to micron level.
● Supports customer customization.

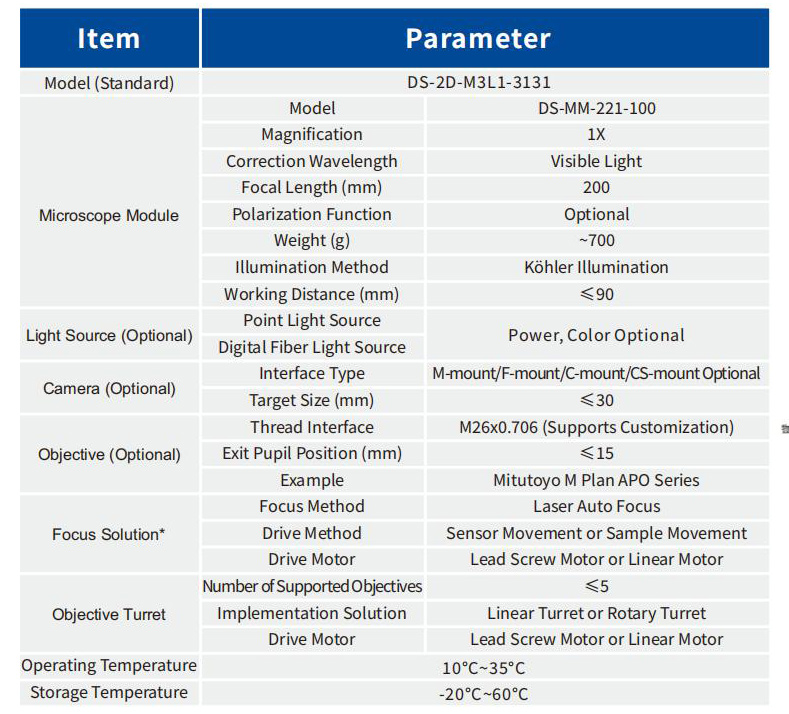

Parameter Specifications

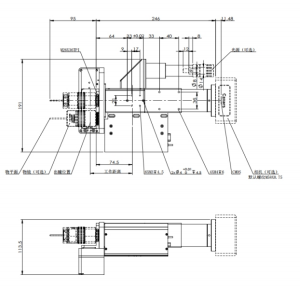

Typical Package Schematic(mm)
